WR-1075-MB Optical receiver is a featured product which is specially designed for FTTH——Fiber to the Home network structure. With small housing, compact and reasonable internal circuit structure and excellent performance indicators. It is the first choice for residential area and home fiber optic network. It is with features to wide range of optical receiving, high output level and low power consumption.
There are three different models in this series.
-NC: The RFTV operating wavelength is 1100 ~ 1620nm.
-WF: Built-in optical signal filter, the RFTV operating wavelength is 1550nm.

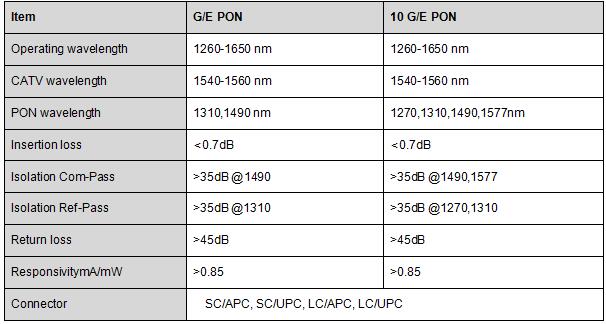

-WD: Built-in CWDM, RFTV operating wavelength is 1550nm，Support G/E PON or 10 G/E PON.
* RF independent output, 75Ω impedance.
* Adopts GaAs amplification device.
* High reliability, low consumption.
* The output level can be adjusted manually.
* Compact housing and easy to install.
* External +12V switching power supply.
